Product

LT Cable

Lightweight design optimized
for industrial applications - LT Cable

Size : Section Area 2 ~ 1,500㎡

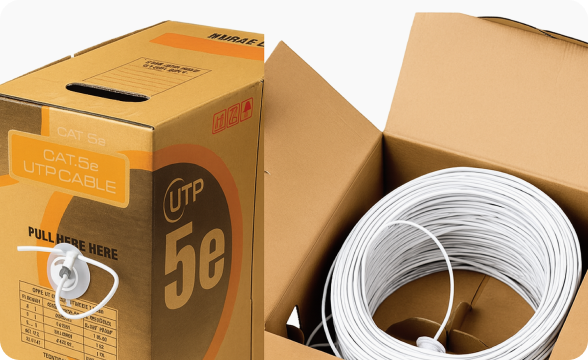

  • Communication Cables

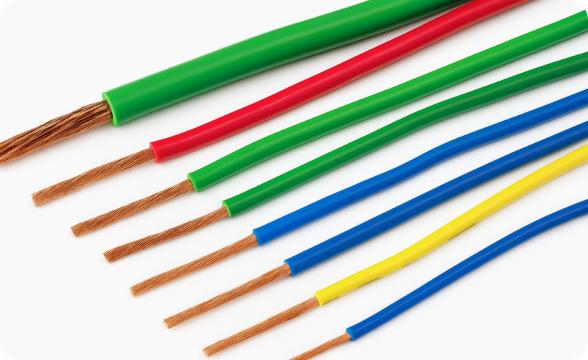

  • Building Cables

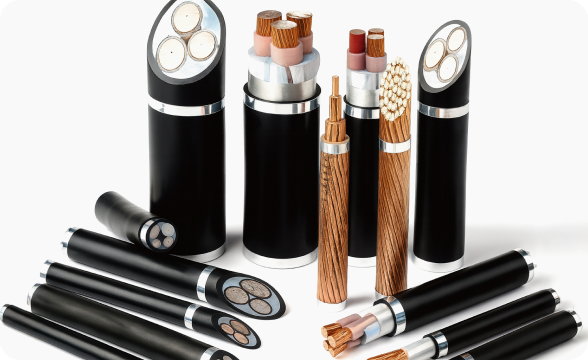

  • Power Cables

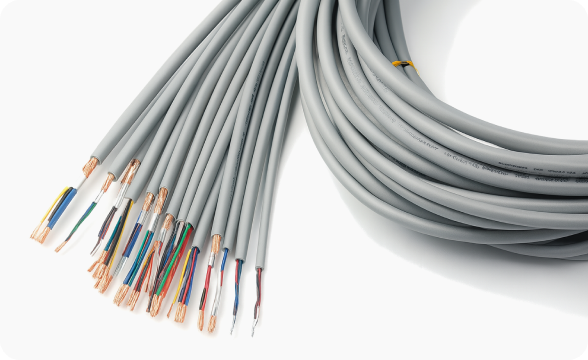

  • Control, Data Cable

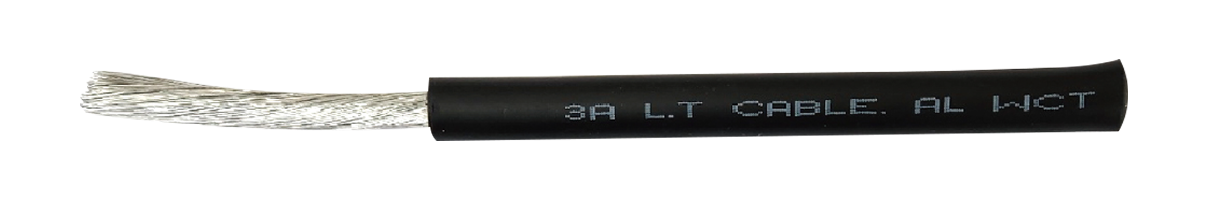

LT Cable AL Wire Welding Cable

(50% weight reduction based on 35mm²)

Conductor Insulation Thickness Average finished outer diameter Max. conductor resistance Cable weight
Nominal Sectional Area Standard Diameter of wires Total Thickness Mean Overall Diameter Maximum Conductor Resistance at 20°C Copper AL
m㎡ mm mm mm Ω/km kg/Km kg/Km
16 0.30 2.0 10 1.8613 230 140
25 0.30 2.0 11.5 1.2441 322 180
35 0.30 2.0 12.5 0.8279 404 200
50 0.30 2.2 14.5 0.5268 0.5268 253

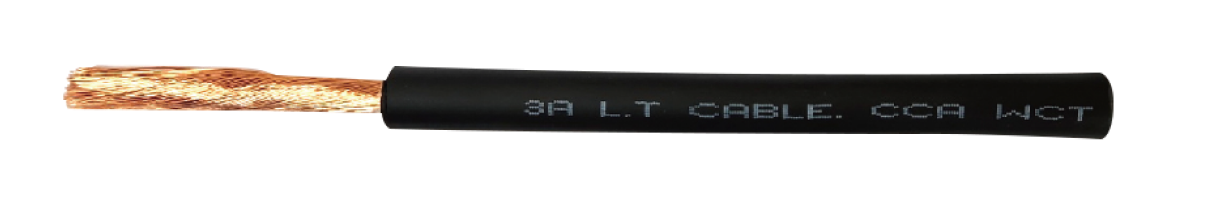

LT Cable AL Wire Welding Cable

(50% weight reduction based on 35mm²)

Conductor Insulation Thickness Average finished outer diameter Max. conductor resistance Cable weight
Nominal Sectional Area Standard Diameter of wires Total Thickness Mean Overall Diameter Maximum Conductor Resistance at 20°C Copper AL
m㎡ mm mm mm Ω/km kg/Km kg/Km
16 0.30 2.0 10 1.6065 230 155
25 0.30 2.0 11.5 1.0779 322 210
35 0.30 2.0 12.5 0.7378 404 280
50 0.30 2.2 14.5 0.5079 574 370
