Product
-
CCA 2.0mm ~0.16mm -
CCAM 2.0mm ~0.10mm
Product

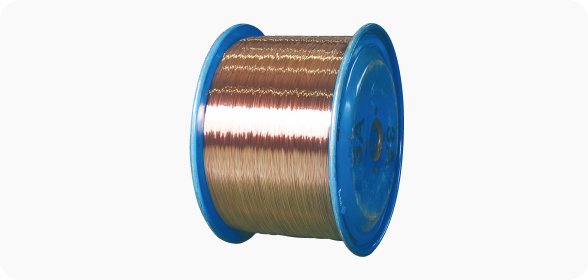

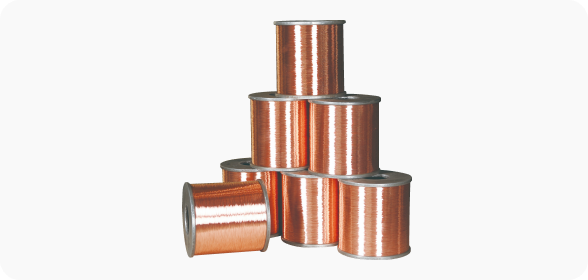

CCA & CCAM Wire
The conductivity of copper and the lightness
of aluminum—CCA / CCAM Wire
Product Standards
- ASTM B 566-93, Copper Clad Aluminum wire.
- Annealed(A) and Hard Drawn(H).
- Copper percent : 10%. 15%. 20%.
Product Applications
| Electrical Transmission Products | High-Frequency Signal Products |
|---|---|

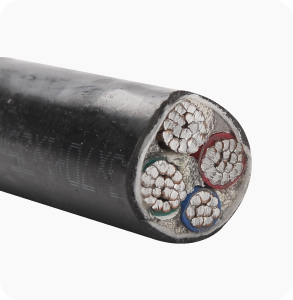

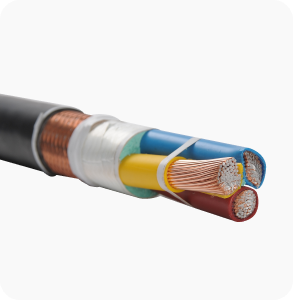

| Conductors for power cables | Inner conductors for CATV coaxial cables |
| Conductors for automotive cables | Conductors for computers, LAN, and data cables |
| Conductors for building wiring | Inner conductors for leaky coaxial cables |
| Conductors for radio-frequency shielding | Inner conductors for micro-coaxial cables |
| Conductors for control cables | Conductors for 50Ω mobile phone cables |
| Fuse | - |
| Bus-Bar | - |
Physical Properties of CCA Wire
| Specification | CU Volume Ratio (%) | CU Mass Ratio (%) | Length Comparison | Density (g/cm3) |
Max. DC Resistivity
(Ω.㎟/m 20℃) |
Min. Conductivity (%IACS) |
|---|---|---|---|---|---|---|
| CCAW10% | 8-12 | 30 | 2.65:1 | 3.32 | 0.02743 | 64 |
| CCAW15% | 13-17 | 40 | 2.44:1 | 3.63 | 0.02676 | 67 |
| CCAW20% | 18-22 | 45 | 2.25:1 | 3.96 | 0.2600 | 70 |
CCA Wire Application Products
Products Using CCA Wire
-

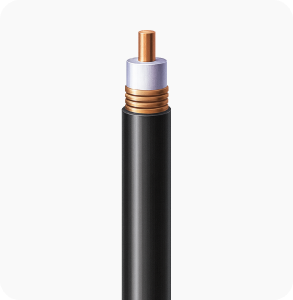

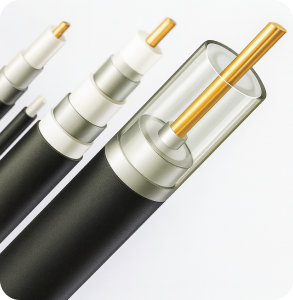

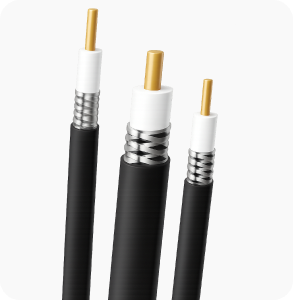

CATV coaxial cable
-
Radiating cable
-

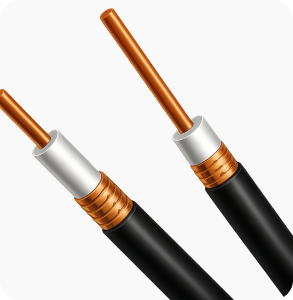

RF cable
-

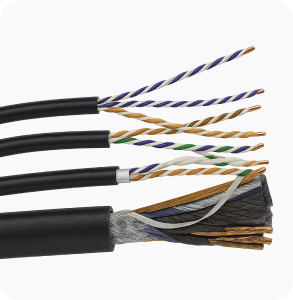

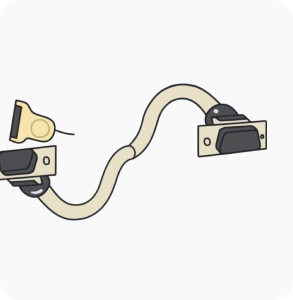

Computer cable
-

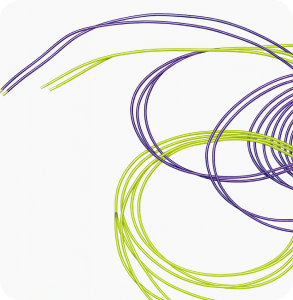

Flexible cable
-
LAN cable
-

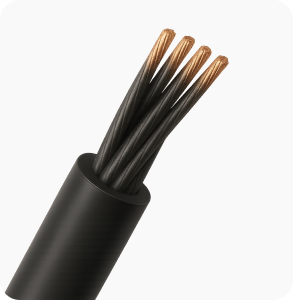

Strand wire
-

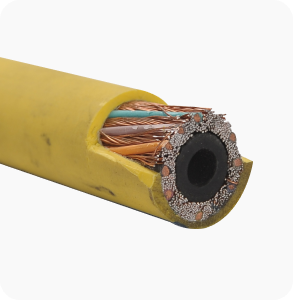

Control cable
-

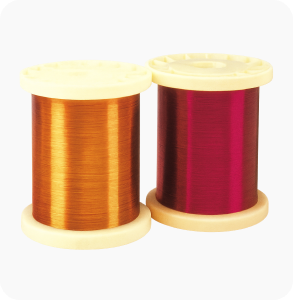

Magnet wire
-

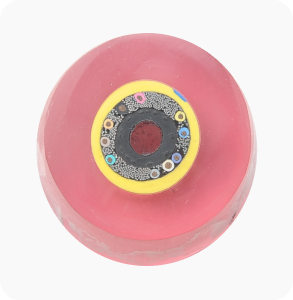

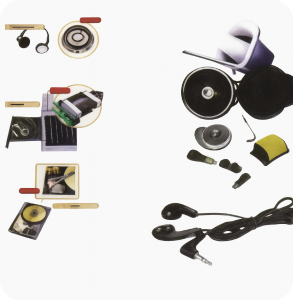

Special wire
-

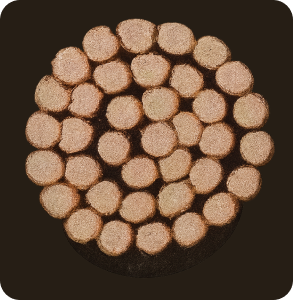

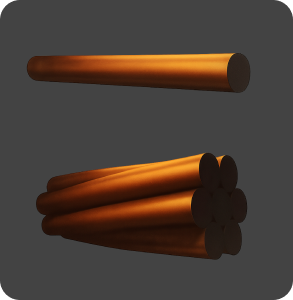

Single / 7-wire strand
-
Strand wire
